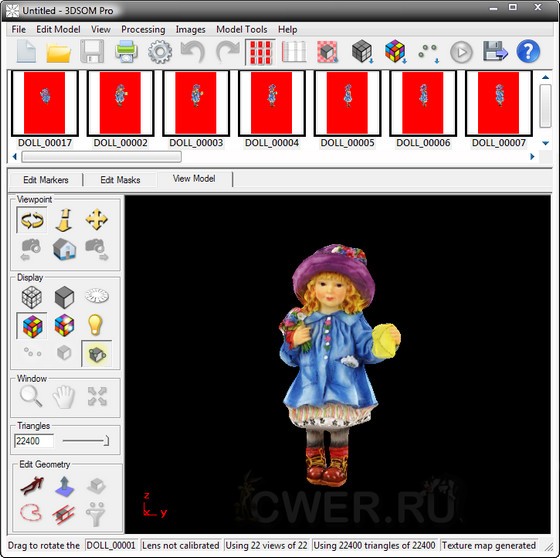

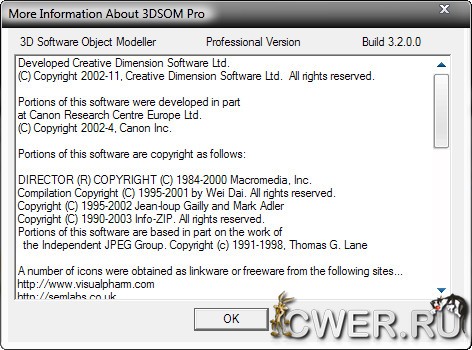

3DSOM Pro 3.2

Программа 3DSOM Pro, предназначена для создания трехмерных моделей на основе фотографий. Программа использует усовершенствованную технологию 3DSOM, разработанную Canon. Для получения трехмерной картинки необходимо иметь несколько фотографий предмета, полученных с разных точек. Эти снимки загружаются в программу, и после обработки вы получаете модель с наложенной текстурой.

Powerful masking tools

• Automated masking capability.
• Interactive threshold selection for automatic masking. Lets you quickly find a good threshold for automatically cutting out the object shape.
• Shrink Wrap tool for semi-automatic masking. Just provide a rough sketch of the outline of the object and let 3DSOM Pro do the rest.
• Complete set of manual masking tools including fill tool, polygon tool, circular brush tool, square brush tool.
• Snap to edge smooth curves - An additional masking tool for defining a boundary curve for fill operations. The curve can be "snapped" to the image to allow fast and accurate masking of images taken without a clean backdrop.
• Improved support for 3rd party mask editing via 4 channel TIFF and PNG suitable for Adobe PhotoShop and JASC Paint Shop Pro.

Surface Generation

• Fast precise wireframe generation - retains the 3DSOM patented "shape-from-silhouette" engine, with no voxel grid aliasing.
• Point Cloud Generation - For highly patterned objects (e.g. natural wood, stone etc) you can automatically create a point cloud. The resulting 3D cloud of points can then be used to improve the model using the optimisation tool. You can also use this feature with plain objects by using two or more cameras and a digital projector to project a stripe pattern onto the object. This allows the software to handle concave regions that can not be recovered using silhouettes alone.
• Surface Optimisation Intelligently smooths away artefacts in the silhouette-based geometry without compromising accuracy. Also improves model accuracy to fit point cloud data if available. Allows much more accurate relighting for added realism.
• Curve feature matching - Instead (or in addition to) automated point cloud generation, you can manually mark curved line features on the object in several photographs to create a 3D (point-sampled) line to guide the 3D model optimisation.
• Subdivision Surface fitting - automated fitting of a smooth subdivision surface for unbelievable geometry compression and additional improvements to the surface appearance.
• Model a part of a complex object - using a set of photographs of a complicated object (e.g. a camera), 3D SOM Pro now allows a single textured part (e.g. the camera body) to be modelled separately. This can result in substantially improved model quality.
• Improved integration with existing 3D modelling packages - Edit or create the surface geometry in a standard 3D modelling package. Then import back to 3DSOM Pro for texturing. Large meshes can be imported in STL, OBJ or 3DS formats for automatic texturing from photographs.
• Interactive mesh decimation to reduce polygon count to required level.
• Interactive Geometry Editing: A range of 3D editing tools are now included to allow the 3D surface to be easily modified. These include smoothing or optimising a defined region, flattening a region, push or pulling the surface, cutting out extruded regions and Boolean addition of extruded shapes.
• Hollowing out concave regions: In addition to the above tools a sophisticated "hollowing" toolset allows users to easily model bowls, cups, jugs, vases and similar objects which were previously difficult to model using 3DSOM Pro alone.

ОС: Windows Vista, Windows XP and Windows 7

What's New in This Release:

• Robust point clouds - you can now build point clouds with up to 1.5 million points and the process distributes the points evenly around the model so you can quit early but still get good object coverage.
• Better support for large photos - the new release has improved auto-masking for high resolution photos to speed up model creation
• Improved memory access - 3DSOM can now utilize up to 4Gb of memory (or 3Gb on 32bit machines) which improves performance with large images and allows larger texture maps to be created.
